General Information
Manufacturer
Mercury Marine
Model

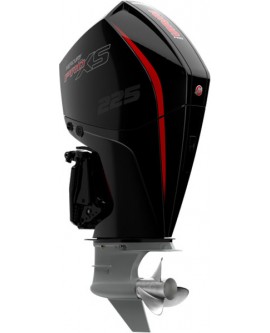

225XL Pro XS DTS Pro Black
Model Code
12250056A
Color
Phantom Black
Electrical
Alternator
85A, 1,071W with Idle charge
Engine
Engine Type
V8 [64 degree] with Dual Overhead Cam [DOHC] and 32-valves
Ignition
SmartCraft PCM 112 Digital Inductive
Starting
Electric Start with SmartStart Protection
Exhaust
Through prop
Measurements
Power
225 Horsepower
Displacement
279 Cubic Centimeter
Bore x Stroke
3.6 x 3.4 in. (92 x 86 mm)
Shaft Length
25″
Dry Weight
505 lbs
Operational
Steering
Big Tiller (optional)
Hydraulic (standard)
Power (optional)
Fuel Type
Unleaded
Full Throttle RPM Range
5,600 – 6,200
Fuel Induction
Electronic Fuel Injection (EFI) Computer Controlled with Advanced Range Optimization
Lubrication
Integrated wet sump
Cooling
Water-cooled with thermostat
Air induction – Performance-Tuned Long-Runner Intake Manifold
Gear Ratio
1.75:1
Gear Shift
F-N-R
Gearcase options – 5.44 in.
Trim System
Power trim and tilt
Max, Trim Range – 20° (-6° to 14°)
Max. Tilt Range – 73° (-6° to 67°)
Instrumentation
SmartCraft Engine Guardian
Digital Throttle and Shift (DTS)
